Description

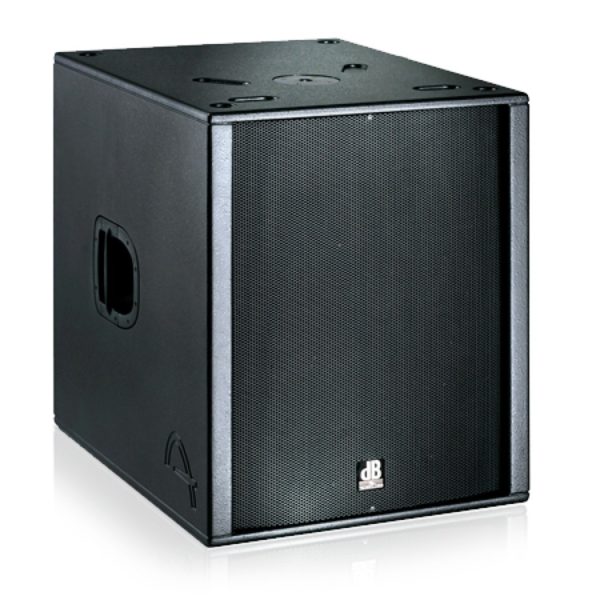

Db Technologies ARENA SW18 Passive Subwoofer 18″ 1200 Watt
Db Technologies ARENA SW18 Passive Subwoofer 18″ 1200 Watt – The 4“ voice coil of the ARENA SW18 delivers powerful and accurate low frequency reproduction, down to 35Hz, at a maximum load of 1200 Watt.
Sound pressure levels of up to 132dB at a crossover frequency of 150Hz, using the internal crossover make this subwoofer the professionals choice.
This woofer can be easily combined with the ARENA satellite units, using just one external power amp.
Tech Specs:
Technical Data
Speaker Type
Passive Subwoofer
Acoustical data
Nominal Power Rating
600 W/RMS
Program Power Rating
1200 W
Impedance
8 Ohms
Frequency Response [+/- 3dB]
35 – 150 Hz
Max SPL
132 dB
LF
18 “
Voice Coil LF
4 “
Internal Crossover
YES
Crossover Frequency (passive)
150 Hz
Input
Signal Input
1x Speakon (Pin 1+=+) (Pin 1-=-)
Signal Output
1x Speakon (Pin 1+=+) (Pin 1-=-)
Mechanics
Housing
Multiplex plywood
Width
565 mm (22.6 in)
Height
700 mm (28 in)
Depth
700 mm (28 in)
Weight
44 kg (97 lbs)
