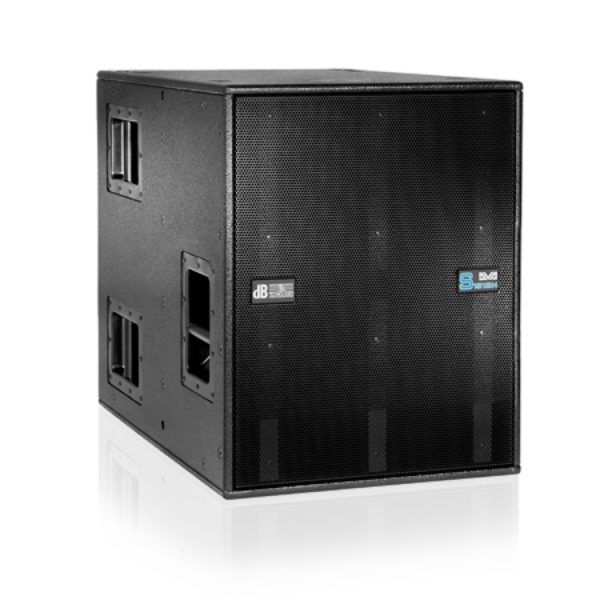

dB Technologies DVA S1518N Active 18″ 1500W Subwoofer

$5,899.00

SKU: 103010171 Categories: , , , ,

dB Technologies DVA S1518N Active 18″ 1500W Subwoofer

The dB Technologies DVA S1518N is a bandpass subwoofer based on the DVA S10, but with 50 percent higher power amp output, an integrated DSP, and an RDNet link. A remarkably versatile subwoofer, it delivers tight and punchy bass response that supports and transitions smoothly to satellites’ lower midrange frequencies.

The DVA S1518N is equipped with a next-generation, 18″ woofer driven by a built-in 1500W digipro® G2 digital power amp.
Subwoofer arrays are easily flown using the optional SRK10 rigging hardware retrofit.

In stock

Loading...

Description

dB Technologies DVA S1518N Active 18″ 1500W Subwoofer

The dB Technologies DVA S1518N is a bandpass subwoofer based on the DVA S10, but with 50 percent higher power amp output, an integrated DSP, and an RDNet link. A remarkably versatile subwoofer, it delivers tight and punchy bass response that supports and transitions smoothly to satellites’ lower midrange frequencies.

The DVA S1518N is equipped with a next-generation, 18″ woofer driven by a built-in 1500W digipro® G2 digital power amp.
Subwoofer arrays are easily flown using the optional SRK10 rigging hardware retrofit.

The S1518N will also serve you well in compact stacks paired with DVA T12, T8 and T4 units or DVX Series enclosures.

Equipped with PFC switched-mode power supplies, they are largely impervious to line voltage fluctuations, which is a tremendous asset in a touring rig.

Our network-enabled DVA subwoofers are designated by an “N” in the product name.

They feature a premium-quality DSP boasting excellent audio specs with variable crossover frequencies, precise limiter functions and adjustable delay settings for perfect time alignment.

Tech Specs:

Technical Data
Speaker Type
Active Bandpass Subwoofer
Acoustical data
Frequency Response [+/- 3dB]
39 – 120 Hz
Max SPL
138 dB
Directivity
Omnidirectional, Cardiod Option with DSP setup
LF
18 “
Voice Coil LF
4 “
Amplifier
Amp Technology
Digipro® G2
Amp Class
Class D
Power Supply
1.5 kW SMPS
LF Amp
1500 W RMS
Cooling
Convection
Processor
Controller
DSP 56 bit
AD/DA Converter
24bit/ 96 kHz
System Presets
X-Over,Delay
Phase
0, 180 °
Limiter
RMS, Peak, Thermal
Delay Option
0-4.5 ms internal
Crossover Frequency LF-MF
75-120Hz | steps of 5Hz
LF-Xover out slope
24 dB/Octave
Mechanics
Housing
Multiplex plywood
Housing Design
Rectangular
Handles
3x Per Side
Accessory
Dolly, Wheels 100mm,
Dust Cover, Rain Cover
Pole Mount
M20
Rigging Points
integrated for SRK10 fly kit
2xPick Points on top to fix
DRK10/20 rigging frames
Width
515 mm (20.6 in)
Height
640 mm (25.6 in)
Depth
720 mm (28.8 in)
Weight
46 kg (101.41 lbs)
