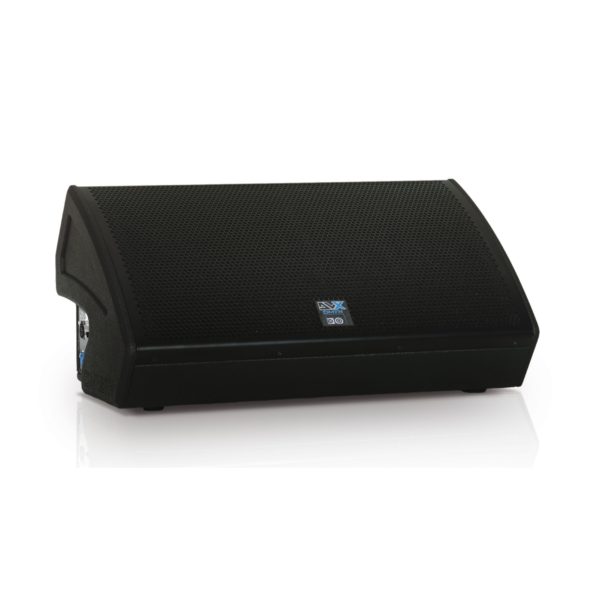

dB Technologies DVX DM12TH 2 WAY ACTIVE STAGE MONITOR

$4,699.00

SKU: 1030102090 Categories: , , , ,

dB Technologies DVX DM12TH 2 WAY ACTIVE STAGE MONITOR

dB Technologies DVX DM12TH – DVX DM TH series caters for the needs of the most demanding stage professionals thanks to premium components, newly designed phase plugs, advanced signal processing featuring FIR filters, a rotatable frontal panel allowing to change the internal disposition of the acoustic components.

DVX DMTH’s internal acoustic design provides the woofers with a correction of the phase, allowing a coherent horizontal coverage as well as  a great definition of the mid-frequencies.

Thanks to advanced digital signal processing with FIR filters, DVX DM TH stage monitors feature a very linear phase emission in the most critical point, allowing both enhanced intelligibility of the whole vocal range and a much more consistent coverage. What is more, thanks to this considerable increment of presence in the vocal range, it has been possible to compensate and characterize also the very bottom and the top end of the box, achieving a very well balanced overall response.

In stock

Loading...

Description

dB Technologies DVX DM12TH 2 WAY ACTIVE STAGE MONITOR

dB Technologies DVX DM12TH – DVX DM TH series caters for the needs of the most demanding stage professionals thanks to premium components, newly designed phase plugs, advanced signal processing featuring FIR filters, a rotatable frontal panel allowing to change the internal disposition of the acoustic components.

DVX DMTH’s internal acoustic design provides the woofers with a correction of the phase, allowing a coherent horizontal coverage as well as  a great definition of the mid-frequencies.

Thanks to advanced digital signal processing with FIR filters, DVX DM TH stage monitors feature a very linear phase emission in the most critical point, allowing both enhanced intelligibility of the whole vocal range and a much more consistent coverage. What is more, thanks to this considerable increment of presence in the vocal range, it has been possible to compensate and characterize also the very bottom and the top end of the box, achieving a very well balanced overall response.

The main innovation in terms of interior design of DVX DM TH monitors caters to the needs of the most demanding stage professionals: the arrangement of the acoustic components may be changed in a few seconds by simply rotating the front panel. The acoustic configuration of the speaker is thus inverted:  the horn is located either on the right or the left, depending on the stage requirements. It is also possible to rotate the  horn in order to optimize the speaker’s dispersion  in case of  vertical usage (like in a drumfill system) .

Inputs (PowerCon and XLR) are positioned on one side and links (Power Con and XLR) on the other side, so that  the wiring will be even more intuitive and cables won’t be visible on stage. Besides, this dispositions allows an easy  coupling with adjacent  monitors as well as a clean, optimized stage look.

A multiplex polyuria painted box guarantees an excellent, touring proof resistance and durability.

Technical Data

Speaker Type
2-Way Active Stage Monitor
Acoustical data
Frequency Response [-6dB]
63 – 16.000 Hz
Frequency Response [-10dB]
59 – 18.000 Hz
Max SPL
136 dB
HF
1.4″
Type HF
Neodymium
Voice Coil HF
2.5″
Horn
Aluminum rotatable horn
LF
12″
Type LF
Neodymium
Voice Coil LF
4″
Directivity
90×40°
Amplifier
Amp Technology
Digipro® G2
Amp Class
Class D
Power RMS
1500 W
Peak Power
3000 W
LF
750 W RMS @4 Ohm
HF
375 W RMS @8 Ohm
Cooling
Single fan
Processor
Controller
DSP 56 bit
AD/DA Converter
24 bit/48 kHz
System Presets
Flat EQ, TH EQ
Limiter
Dual active, RMS/Peak, Thermal
Crossover Frequency LF-HF
1070 Hz
Slope MF-HF
24 dB/Octave
Mechanics
Housing
Multiplex plywood – Polyurea painting
Advanced features
Rotatable front panel (left or
right monitor customization)
Angles Up
35°, 55°
Handles
1x left side, 1x right side
Width
670 mm (26.4 in)
Height
325 mm (12.8 in)
Depth
405 mm (15.9 in)
Weight
24.5 kg (54 lbs)
