Description

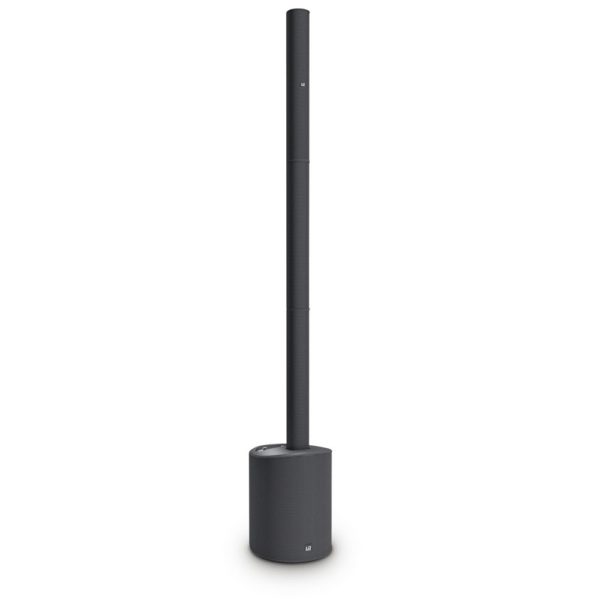

LD Systems Maui 5 GO Battery Driven Ultra Portable Column PA System
The LD Systems MAUI 5 Go is a battery-operated column PA system powered by a lithium-ion battery pack that provides up to 6 hours of performance. With Bluetooth streaming and a microphone, hi-Z instrument and line inputs, its ideal for speech and music reproduction at private and corporate events.
Weighing under 30 pounds, it’s a portable solution for off-the-grid applications, assembling in seconds with custom multi-pin connectors. The line array driver configuration provides extended coverage and the system’s wide dispersion and excellent feedback resistance eliminates the need for monitor wedges.
To ensure the superb audio quality of its 800 watts of peak output, the system includes a proprietary LECC DSP with multiband limiter, equalizer, compressor and crossover functions. The integrated 4-channel mixer provides individual input, main and subwoofer level controls and a variable high frequency to shape a perfectly balanced sound. Featuring LD System’s patent-pending Quick-Swap technology for instant battery pack replacement, the LD Systems MAUI 5 GO is ready to perform without time limit.
Sporting all-in-one convenience, the LD Systems MAUI 5 GO is the ultimate in awesome high-quality sound you can take anywhere. The ultra-portable battery operated column PA system is powered by a high-capacity lithium-ion pack that provides up to 30 hours of continuous performance. The subwoofer integrates a smart charger, an external charging dock is available as accessory. With Bluetooth® stereo audio streaming and microphone, hi-Z instrument and line inputs, it is ideal for speech and music reproduction at private or corporate events, busking and all off-grid applications.
Weighing in under 13 kg (29 lbs.), the four-piece LD Systems MAUI 5 GO is ultra-portable and assembles in seconds with custom multi-pin connectors. The line array driver configuration results in extended coverage, and the system’s wide dispersion and excellent feedback resistance eliminate the need for monitor wedges. With a total of 800 watts peak output, the MAUI® 5 GO is the loudest and best sounding battery-powered PA on the market covering audiences of 100 or more with ease.
To ensure superb audio quality in all situations, the system includes LD’s proprietary LECC DSP with multiband limiter, equalizer, compressor and crossover functions. The integrated 4-channel mixer provides individual input, main and subwoofer level controls and a variable high frequency boost that allow you to quickly shape a perfectly balanced sound. Featuring LD System’s Quick-Swap technology® for instant battery pack replacement, the LD Systems MAUI 5 GO is ready to perform without time limit.
- 800 watts of peak output
- LECC DSP with multiband limiter, equalizer, compressor and crossover functions
- Lithium-ion battery pack provides up to 6 hours of performance
- Weighs under 30 pounds
- Excellent feedback resistance
Tech Specs:
| Product number: | LDMAUI5GO |
|---|---|
| Product type: | PA Complete Systems |
| Type: | active |
| Number of subwoofers: | 1 |
| Colour: | Black |
| Max. SPL (peak): | 120dB |
| Frequency response: | 50 – 20,000Hz |
| Dispersion (H x V): | 120° x 20° |
| Overall height: | 1985mm |
| Weight: | 12,9kg |
| Battery | |
| Rechargeable batteries: | 29.6V / 5200 mAh |
| Battery manufacturer: | LG Chem |
| Battery technology: | Lithium-ion |
| Battery operation time at maximum load: | 10 h @ 104 dB (Live music), 30 h @ 98 dB (Lounge mode), 6 h @ 120 dB (DJ mode) |
| Charging time: | 3 hours up to 100%, 2 hours up to 80% |
| Woofer characteristics | |
| Low/mid driver dimensions: | 8″ |
| Woofer size: | 203.2mm |
| Woofer magnet: | Ferrite |
| Woofer brand: | Custom-made |
| Woofer voice coil: | 2″ |
| Woofer voice coil (mm): | 50.8mm |
| Cabinet construction: | vented |
| Cabinet material: | ABS plastic |
| Subwoofer width: | 305mm |
| Subwoofer height: | 405mm |
| Subwoofer depth: | 395mm |
| Subwoofer weight: | 8.9kg |
| Mid/Hi System | |
| Midrange size: | 4 x 3″ |
| Midrange size: | 4 x 76.2mm |
| Midrange magnet: | Neodymium |
| Midrange brand: | Custom-made |
| Midrange voice coil: | 1″ |
| Midrange voice coil: | 25.4mm |
| Mid/Hi system impedance: | 4Ohm(s) |
| Loudspeaker inputs: | 1 |
| Speaker input connections: | Custom-made multipin |
| Cabinet construction mid/high: | Closed |
| Mid/Hi system cabinet material: | ABS plastic |
| Mid/Hi system width: | 82mm |
| Mid/Hi system height: | 535mm |
| Mid/Hi system depth: | 105mm |
| Mid/Hi system weight: | 3.8 (3ps)kg |
| Amplifier module (integrated in subwoofer) | |
| Amplifier: | Class D |
| Amplifier output system (RMS): | 200W |
| Amplifier output system (peak): | 800W |
| Protection circuits: | DSP-based multiband limiter, thermal overload, over-current, short circuit |
| Cooling: | Convection |
| Operating Temperature: | 0 – 50°C |
| Controls: | Mic level, On / Off, Line level, MP3 / Hi-Z level, Mono/stereo mode, BT pairing, BT level, Sub level, Main level |
| Indicators: | Limit, Protect (protection circuit engaged), Signal, On |
| Operating voltage: | Switching power supply, 100 V AC – 120 V AC, 50 – 60 Hz, 200 V AC – 240 V AC, 50 – 60 Hz (Automatic conversion) |
| Power consumption: | 300 W |
| Line inputs: | 2 x stereo |
| Line input connectors: | XLR, 6.3 mm jack |
| Mic inputs: | 1, 6.3 mm jack, XLR |
| MP3 inputs: | 1 |
| MP3 input connectors: | 3.5 mm jack |
| Hi-Z inputs: | 1 |
| Hi-Z input connectors: | 6.3 mm jack |
| Loudspeaker outputs: | 1 |
| Speaker output connections: | Custom-made multipin |
| DSP characteristics | |
| Bit depth AD/DA converter: | 24 / 24bit |
| Internal sampling frequency: | 48kHz |
