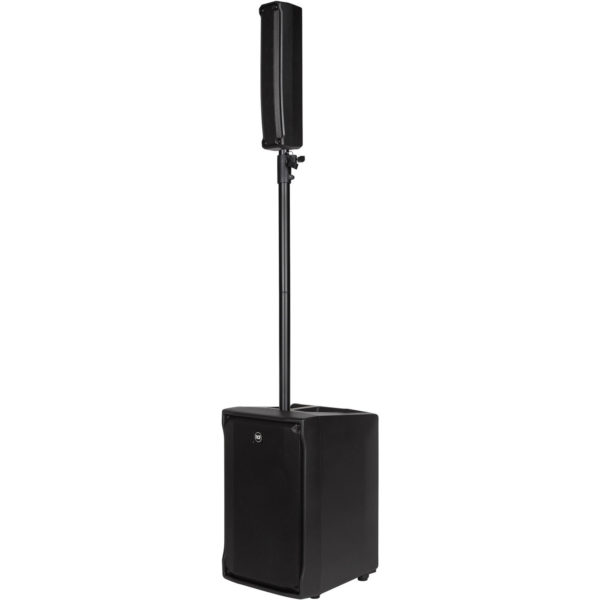

RCF EVOX JMIX8 Line Array PA System with 8-Channel Mixer

$2,299.00

SKU: 13000556 Categories: , , ,

RCF EVOX JMIX8 Line Array PA System with 8-Channel Mixer

RCF EVOX JMIX8 Line Array PA System with 8-Channel Mixer  – Boasting an 8-input digital mixer, the RCF EVOX JMIX8 takes the EVOX J Series portable, column-style PA systems to the next level. With a robust 12” woofer in a bass-reflex enclosure serving as its foundation, the EVOX JMIX8 provides full-room coverage with stunningly clean and accurate sound—all in a highly portable package.

In stock

Loading...

Description

RCF EVOX JMIX8 Line Array PA System with 8-Channel Mixer

RCF EVOX JMIX8 Line Array PA System with 8-Channel Mixer  – Boasting an 8-input digital mixer, the RCF EVOX JMIX8 takes the EVOX J Series portable, column-style PA systems to the next level. With a robust 12” woofer in a bass-reflex enclosure serving as its foundation, the EVOX JMIX8 provides full-room coverage with stunningly clean and accurate sound—all in a highly portable package.

The EVOX JMIX8’s satellite module houses eight 2″ full-range drivers, which are capable of handling high SPLs with clarity and ease. Onboard Class-D amplification provides 1,400 watts of peak power for a maximum SPL of 128 dB, all while maintaining crystal-clear vocal reproduction, crisp highs and tight low-end reproduction. Whether you’re working a DJ gig, doing a solo coffee shop performance, or making a speaking presentation, the EVOX JMIX8 gives you the wide coverage, power and articulation you need to sound your best.

The onboard processing power of the innovative Z.CORE DSP provides not only full mix functions, it includes high-quality instrument FX and AMP simulations. An EVOX iOS/ Android-compatible app allows to manage the JMIX8. Adding Bluetooth audio and Hi-Z instrument input, the EVOX JMIX8 combines the quality and reliability of RCF transducers and amplification with a powerful remote controllable 8-channel digital mixer. The all-in-one solution, superior sound quality and easy set-up and transportation make the EVOX the perfect workmate for musicians.

The mixer section features a high quality professional preamplifier with remote digital gain control, selectable high pass filter, pan control and polarity reversal switch. Phantom power for condenser/ electret microphones (+48V) available for channel 1 and 2. Each input channel is provided with a three band EQ: ±12dB gain shelving equaliser for lows and highs and a semiparametric EQ from 50Hz to 12kHz and ±12dB gain for the mid band. The EQ can be switched OFF with the touch of a button. Each channel can send audio to the FX chain and to the AUX output for monitoring or other creative uses.

The line input 4 can be switched to a Hi-Z mode and host several realistic amp modeling simulators. Guitar and Bass players can count on a whole range of 15 realistic emulations tuned for maximum reality.

All the available functions on the EVOX JMIX8 system integrated mixer can be managed from the operating panel. The select buttons: INPUT, OUTPUT, HOME, SYSTEM, MFX, FX give access to all the parameter pages on the LCD display.

A 7-band graphic EQ on the main channel lets you shape the frequency response of the system. In order to have a powerful overall sound, limiting peaks and more harmonics, the JMIX8 is equipped with four mastering processing presets can be selected.

The high-excursion 12” RCF woofer extends to the lowest frequencies offering quick and
precise punch. The bass-reflex port design avoids air turbulence reducing distortions. The EVOX design features wide, constant directivity coverage of 120°x30°. The vertical array is progressively shaped to guarantee consistent sound coverage from the first row to the last.

Integrated amplifier DSP manages full loudspeaker processing, FiRPHASE filters, crossover and EQ, soft limiter, and dynamic bass boost. Class-D power amplifier technology packs huge performance, operating with high efficiency into a lightweight solution. The robust mechanical aluminum structure of the amplifier strengthens the unit during transportation and provides fanless heat dissipation

Thanks to FiRPHASE, a proprietary and advanced FIR filtering technology, the EVOX system provides more transparency of the original input signal with absolute clarity. The FiRPHASE algorithm optimizes dynamics, amplitude and phase patterns, while at the same time ensuring minimum system latency for improved sound performance.

The sturdy, ergonomic cabinet is easy to carry, thanks to the handle at the top and the practical bag. Each subwoofer includes a steel pole socket for the array. Stability and safety are assured. The satellite module slides easily into the rear of the subwoofer for compact transportation. Internal structure reinforcements prevent any damage of the cabinet. Cabinets are molded on a special polypropylene composite material designed to dampen down unwanted vibrations

In addition to the handle on top of the woofer’s cabinet, transportation is made easy thanks to the trolley, that is fully integrated into the optional cover of the speaker. During transportation, the metal pole is safely attached to the trolley with the cover’s handles.

FEATURES
  • Portable column-style powered PA system
  • 8-input digital mixer with effects
  • 12″ long-excursion low-frequency driver
  • Array of eight 2″ full-range drivers
  • Class-D amplification with 1,400W peak output

Tech Specs:

Speaker Configuration

  • Active/passive: Active
  • Type: Line array/column
  • LF driver: 12″
  • HF driver: 2″

Power

  • Amplifier class: D
  • Wattage: 1,400W peak
  • Mixer/preamp: Yes

Audio

  • Frequency response: 40Hz–20kHz
  • Coverage pattern: 120° x 30°
  • Max SPL: 128dB

Inputs

  • XLR: 4 x Combo
  • TS: 2 (stereo pair)
  • RCA: Yes (stereo)

Outputs

  • XLR: 1 to connect to 2nd unit
  • TS: 1 x Aux out
  • SPEAKON: 1 to top speaker

Subwoofer enclosure

  • Cabinet material:PP composite
  • Width: 113,9 mm (4,48”)
  • Height: 2350 mm (92.5”)
  • Depth: 120,5 mm (4.74”)
  • Weight entire system: 24,4 Kg (53,8 lbs)

RCF
