Samson Concert 88 Handheld 16-Channel True Diversity UHF Wireless System

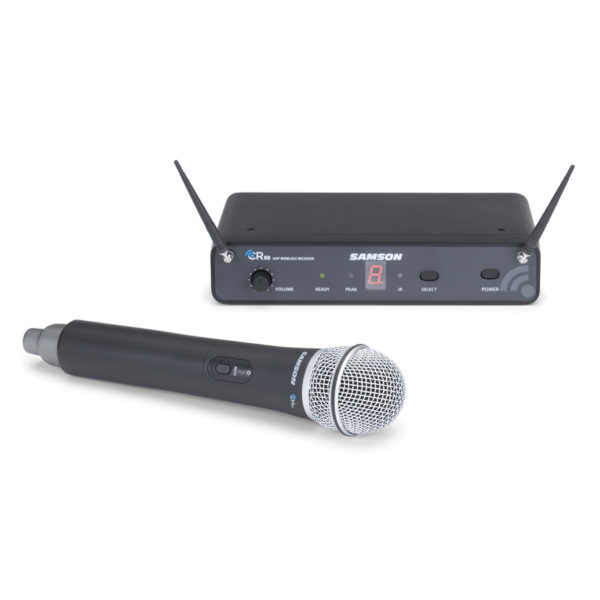

The Samson Concert 88 Handheld 16-Channel True Diversity UHF Wireless System consists of a CR88 half-rack UHF receiver and a CH88 handheld transmitter with Q6 dynamic microphone capsule. It is designed for live sound reinforcement applications and can be used wherein the vocalist, MC, or lecturer wants to be free to move around and sing or speak wirelessly.
The receiver features a true diversity dual-antenna design whereby internal signal processing switches to the antenna that is receiving a stronger signal. This helps to prevent drop-outs and maintain a more accurate transmission. The unit includes a tone key and an auto-mute function to eliminate noise if the receiver ever loses the signal. For controls, the receiver features a power button, volume knob, select button, a 7-segment channel indicator LED, as well as audio ready, peak, and IR indicator lights.
Up to 16 of these systems may operate simultaneously on two frequency bands from a maximum operating range of 300′. The CH88 handheld transmitter is synced with the receiver via infrared. It can operate for up to eight hours on two AA batteries. Additionally, it features an on and off/mute switch.
- True Diversity Reception
- Switches between two antennas depending on whichever one is receiving the stronger signal to minimize dropouts in audio
- Infrared Link
- Connects the wireless receiver to the wireless transmitter
- Outputs
- The receiver features both XLR and 1/4″ outputs
-
Packaging Info Package Weight 2.85 lb Box Dimensions (LxWxH) 11.8 x 9.7 x 3.5″
