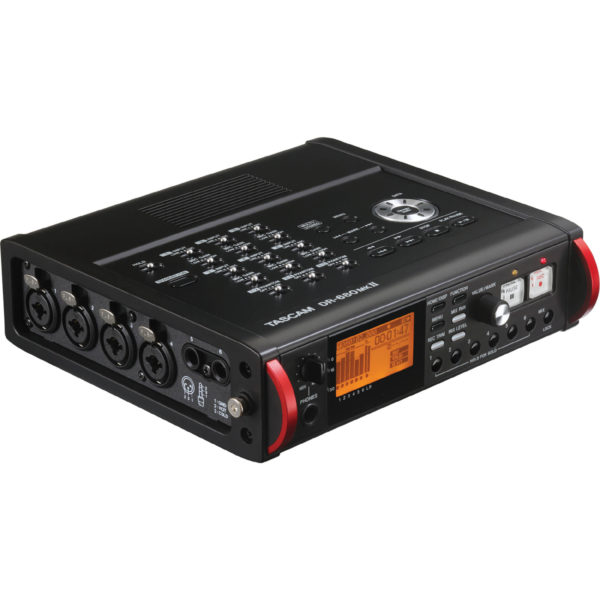

Tascam DR680 Mk2 6-track Multitrack Field Recorder

$899.00

SKU: TASCAMDR680MK2 Categories: , ,

Tascam DR680 Mk2 6-track Multitrack Field Recorder

Tascam DR680 Mk2 – The Tascam DR680 was a great mobile recording unit and the new MK2 is even better. When you want great quality audio on the go this is the place to start. Featuring 6 XLR/TRS inputs with phantom power, and a digital input for versatility, its easy to record live music with multiple mics, capture sound effects in surround, or document film shoots or events with multiple microphones.

Out of stock

Loading...

Description

Product Code: TASCAMDR680MK2

Tascam DR680 Mk2 6-track Multitrack Field Recorder

Tascam DR680 Mk2 – The Tascam DR680 was a great mobile recording unit and the new MK2 is even better. When you want great quality audio on the go this is the place to start. Featuring 6 XLR/TRS inputs with phantom power, and a digital input for versatility, its easy to record live music with multiple mics, capture sound effects in surround, or document film shoots or events with multiple microphones.

Microphone preamps have a significant impact on the quality of the recorded audio. The DR-680MKII has HDDA mic preamps – designed by TASCAM with carefully selected components. Each HDDA mic preamp is built with a differential amplification circuit that employs discrete architecture, and made with parts selected for their audio quality. These preamps also provide +48V phantom power.

Simultaneous recording of 4 channels in MP3 format possible

Recording of MP3 files with up to 4 channels is also possible at 96, 128, 192 and 320 kbps. This allows efficient control of files sizes when in situations requiring long recording times.Stereo or mono file can be selected for file type.

Take the Tacsam DR680 Mk2 with you

SD, SDHC and SDXC cards are used as recording and playback media, and the compact form offers excellent vibration resistance. Along with the included shoulder strap, this unit has a built-in folding stand for tabletop use, making operation easy in a variety of situations.

Specifications

  • SD/SDHC/SDXC cards used as recording/playback media
  • 6 balanced mic/line inputs (1-4: XLR/TRS combo jacks, 5-6: TRS jacks)
  • 6 unbalanced outputs (RCA pin jacks)
  • COAXIAL digital input and output (S/PDIF, AES/EBU)
  • Recording/playback formats: BWF, WAV, MP3
  • With BWF format, recording starting times can be stored in files
  • 8-track recording at 96kHz/24-bit (BWF, WAV)
  • 6 mic/line inputs and stereo mix recording or 6 mic/line input and digital stereo recording
  • Record MP3 files at 96, 128, 192 and 320 kbps
  • Record 4-channel MP3 files
  • From 4 mic/line inputs (XLR/TRS combo jacks) or 2 mic/line inputs and digital stereo inputs
  • 2-track recording at 24-bit/192kHz (BWF, WAV)
  • From 2 mic/line inputs or digital stereo inputs
  • Digital inputs and outputs support double speed 96 kHz and quad speed 192 kHz
  • Sampling frequencies
  • 44.1, 48, 96, 192 kHz (BWF, WAV) 44.1, 48 kHz (MP3)
  • Quantization bit depth: 16/24-bit (BWF, WAV)
  • 6 channels of TASCAM HDDA mic preamps for high audio quality with 48V phantom power
  • Limiter and low-cut filter available on each mic/line input
  • Built-in stereo monitoring mixer for headphone mix and/or recording
  • Dual-recording function allows two files to be recorded simultaneously at different levels
  • GANG function allows the input gain of multiple channels to be operated simultaneously
  • Pre-recording function allows the capture of audio two seconds before recording is started
  • Automatic-recording function can start and stop recording automatically in response to the input signal level (48, 24, 12 or 6 dB)
  • Even when multiple tracks are used, all recordings made at the same time can be managed as a single take/file
  • Track incrementation allows a recording to be split by creating a new file at the desired point without interrupting recording
  • Up to 1000 takes and 5000 files can be recorded on a single card
  • Mark function can be used to move to specific points (up to 99 marks per take)
  • Wheel can be used to change the playback position
  • Repeat playback function
  • Panel lock function to prevent misoperation
  • Cascade function allows transport control of multiple DR-680MKII units using a master unit
  • File name format can be set to use a user-defined word or the date
  • High-speed transfer of files to a computer using USB 2.0
  • 128×64-dot matrix display with backlight
  • Built-in mono speaker with 500mW output
  • Headphone output and level control (50mW+50mW/ 32ohm)
  • Powered by 8 AA batteries or the included AC adapter
  • USB cable and shoulder strap included
  • Folding stand convenient for tabletop use
  • CS-DR680 carrying case (sold separately)
  • AR-DR680 case by Portabrace also available
