Tascam TM-Drums 4-Microphone Kit For Drums

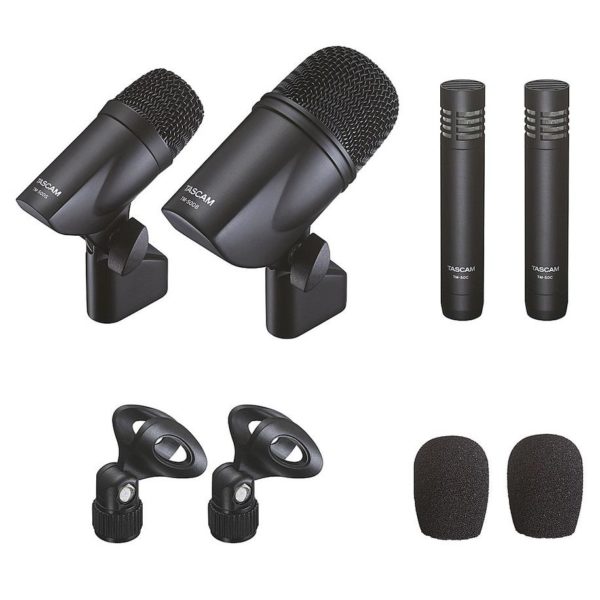

The Tascam TM-Drums, 4-Microphone Kit includes one TM-50DB dynamic kick-drum mic with integrated stand mount, one TM-50DS dynamic snare mic with integrated stand mount, two TM-50C overhead condenser mics with mic clips and windscreens, and a hard carry case. It is a specific toolset for harnessing the power of drums and percussion in today’s modern music, and can be used to capture audio and provide the recording- or live-sound engineer with everything needed to obtain a truly inspiring soundscape.
Tascam TMDRUMS specs
| Model |
TM-50DB |
| Type |
Dynamic |
| Polar Pattern |
Cardioid (unidirectional) |
| Frequency Response |
50 to 15 kHz |
| Output Impedance |
400 Ohms +/-30% (at 1 kHz) |
| Load Impedance |
<1 kOhms |
| Sensitivity |
-55 dB +/-3 dB (0 dB= 1 V/Pa at 1 kHz) |
| Connector |
3-pin XLR, male |
| Dimensions (W x H x D) |
2.3 x 4.7 x 4.5″ (59 x 118 x 115 mm) |
| Weight |
16 oz (460 g) microphone body only |
| Model |
TM-50DS |
| Type |
Dynamic |
| Polar Pattern |
Cardioid (unidirectional) |
| Frequency Response |
50 Hz to 14 kHz |
| Output Impedance |
350 Ohms +/-30% (at 1 kHz) |
| Load Impedance |
<1 kOhms |
| Sensitivity |
-56 dB +/-3 dB (0 dB= 1 V/Pa at 1 kHz) |
| Connector |
3-pin XLR, male |
| Dimensions (W x H x D) |
1.7 x 4.1 x 3.9″ (42.5 x 105.0 x 98.0 mm) |
| Weight |
12 oz (330 g) microphone body only |
| Model |
TM-50C |
| Type |
Condenser |
| Polar Pattern |
Cardioid (unidirectional) |
| Frequency Response |
30 Hz to 18 kHz |
| Output Impedance |
100 Ohms +/-30% (at 1 kHz) |
| Load Impedance |
<1 kOhms |
| Sensitivity |
-38 dB +/-3 dB (0 dB= 1 V/Pa at 1 kHz) |
| Maximum SPL |
130 dB |
| Signal to Noise Ratio |
74 dB |
| Connector |
3-pin XLR male |
| Dimensions (W x H x D) |
0.8 x 4.6 x 0.8″ (21 x 117 x 21 mm) |
| Weight |
3.0 oz (85 g) microphone body only |
| Package Weight |
2.95 lb |
| Box Dimensions (LxWxH) |
11.2 x 6.6 x 4.1″ |
