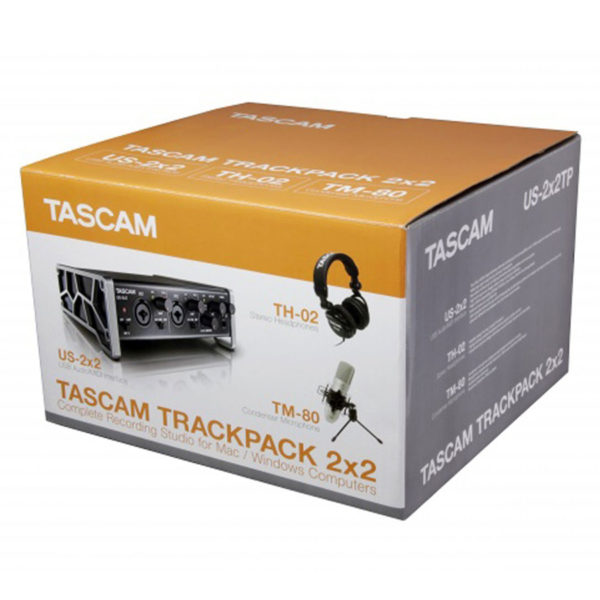

Tascam TrackPack 2×2 Complete Recording Studio Pack

The Tascam TrackPack 2X2 is a recording package assembled by Tascam that includes everything you need to make high quality recordings at home with your existing computer system. The TrackPack 2 x 2 consists of the chief components of a computer-based recording system: an interface, a microphone, headphones and software.

The precise compnonets are TASCAMs US-2×2 USB audio interface, a TM-80 studio condenser microphone with shockmount, and TH-02 headphones, plus Cakewalk SONAR X3 LE and Ableton Live Lite 9 DAW software.

The US-2×2 is a 2-in/2-out USB interface, bus powered from your Mac or Windows computer. A pair of Ultra-HDDA mic preamps provide up to 57dB of gain and the best noise and distortion specs in their class. The audio design features high-performance, musical components like NE5532 op amps for rich sound quality without coloring the source. Class-compliant drivers enable use with tablets like the iPad when using an optional power supply.

The US-2x2s all-aluminum case features a pair of œbio-cell side panels. In addition to their striking design, the side panels ergonomically angle the interface towards you to make the switches and knobs easier to read on a desktop. The US-2×2 includes MIDI in and out, balanced audio outputs, a headphone amp, and two DAW applications to choose from “ both Cakewalk SONAR X3 LE and Abelton Live Lite 9. Included with the software are dozens of plug-in instruments, effects, and loops to get you started.

Also included is the TM-80, a condenser microphone ideal for vocals, drums, and acoustic instruments. The TM-80 includes a shockmount and desktop stand. The TH-02 closed-back headphones provide isolation while recording and a great reference during mixdown.

TH-02
Design: Closed-back dynamic
Frequency response: 18Hz – 22,000Hz
Driver diameter: 50mm
Sensitivity: 98dB (+/-3dB)
Input impedance: 32ohms
Max input power: 600mW
Cable: 9.8ft (3m) when fully extended
Plug: 3.5mm(1/8″) stereo mini plug
6.3mm(1/4″) stereo phone plug adapter
Dimensions: 180 (W) — 240 (H) — 90 (D) mm
7.1 (W) — 9.5 (H) — 3.5 (D) inch
Weight: 298g / 0.7lb (With cable)

TM-80
Transducer type: Condenser
Polar pattern: Cardioid
Frequency response: 20 – 20,000 Hz
Output impedance: 200ohm +/-30% (at 1kHz)
Load impedance: >1k ohm
Sensitivity: -38dB +/-2dB (0dB=1V/Pa at 1kHz)
Max SPL: 136dB (at 1kHz=1% THD)
S/N ratio: 77 dB
Output Connector: 3-pin XLR male
Phantom Power Requirements: 9 – 48VDC phantom power
Dimensions: 48(W) — 165 (H) — 48 (D) mm
1.9 (W) — 6.5 (H) — 1.9 (D) inch
Weight: 300g / 0.7 lb
Includes: shock mount, mini desk stand, mic cable (1.8m XLRM “ XLRF)
