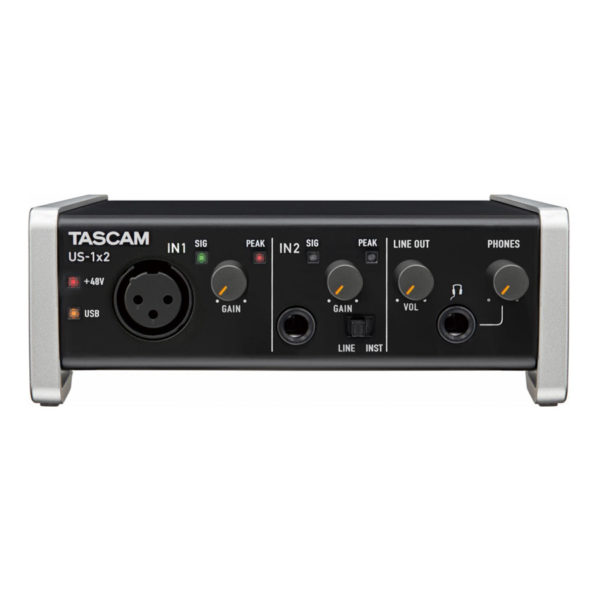

Tascam US-1X2 1 In 2 Out USB Audio Interface
Tascam US-1X2 1 In 2 Out USB Audio Interface – Featuring one of the company’s Ultra-HDDA low-noise microphone preamp, the Tascam US-1X2 1-In/2-Out USB Audio Interface is capable of recording one channel in up to 24-bit / 96 kHz resolution to your compatible Mac, Windows, Android, or iOS device. The unit features an all-metal, angled design, optimized for viewing and operation when placed on a desktop. To use with mobile devices, you can power the US-1X2 via USB bus or AC power source with an AC adapter (available separately) .
Quality Desktop Recording
Ultra-HDDA Mic Preamp
- Ultra-HDDA (High Definition Discrete Architecture) mic preamp design is based on discrete components, similar to classic professional gear
- Key components selected following extensive listening tests
- Low noise level with EIN rating of -125 dBu and signal-to-noise ratio of 101 dB
- Microphone preamp gain range of 57 dB supports dynamic and ribbon microphones
NE5532 Op-Amps
- NE5532 op-amps at the audio input and output stages
- Famously used in classic recording consoles and signal processors due to their sweet, musical sound
Mic and Line Inputs
- Microphone input features a heavy-duty, metal XLR connector, which stays in place even when moving microphones
- XLR connector supplies +48V phantom power for condenser microphones
- 1/4″ TRS input for balanced line-level signals from professional processors and synthesizers
- XLR and 1/4″ inputs can be switched to high impedance for direct recording of electric guitar and bass (only the XLR or 1/4″ input can be used, not both at the same time)
High-Resolution Recording
- Records at up to 96 kHz / 24-bit resolution
- Mic preamp and A/D converters work together to capture the clearest signal path, at 96 kHz or at lower sampling rates
Simple Operation
Installation
- USB class-compliant 2.0 support (Windows/Mac)
- USB 2.0 computer connection supplies appropriate bandwidth, even for multi-channel 96 kHz recordings
- Works with high-performance ASIO or Core Audio drivers, or built-in class-compliant driver
- Simple-to-use, on-screen control panel lets you monitor and adjust critical interface settings
- USB bus-powered for mobile recording with computer
- Connects with Android, Windows-based tablets, iPad, iPhone, and other iOS devices (AC adapter required – available separately)
- Confirmed operation with major DAW software (SONAR, Pro-Tools, Cubase, Live, Studio One, Garage Band)
Zero-Latency Monitoring
- A direct monitoring path is included to monitor the input signal before it is sent to the computer and provide zero-latency monitoring
Monitoring Options
- Stereo RCA output suitable for connection to powered monitors
- Standard headphones TRS output jack
- Separate controls for line and headphones output volumes
- Input sound monitoring can be set to stereo or mono
MIDI
- MIDI input and output via USB
Sleek Industrial Design
- Tough, all-metal casing for durability
- Bio-cell side panels add style
- Angled design is optimized for desktop viewing and operation
Cubase LE for MAC/PC
- Compact DAW offers the basic tools for recording, editing, and mixing everything from the initial musical idea to the final track
- Ideal for songwriter, guitar player, vocalist, or electronic music producer
Cubasis LE for iOS
- Compact version of Steinberg’s streamlined, multitouch sequencer for the iPad
- Touch-intuitive production tool for recording, editing, and mixing your songs
