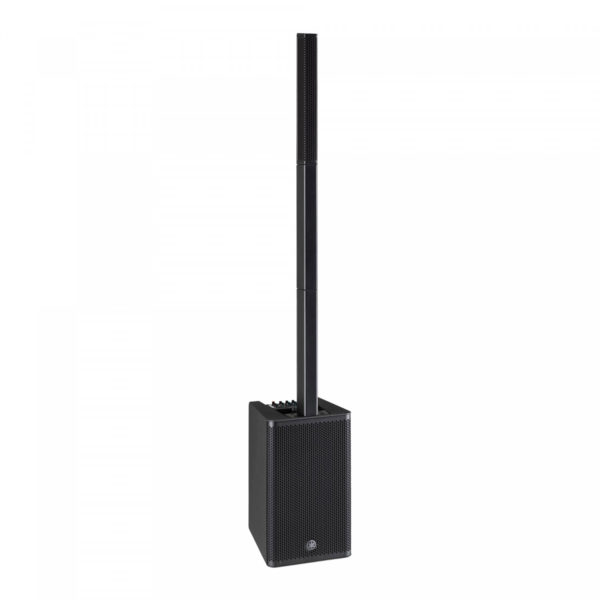

Yamaha STAGEPAS 1K 1000W Column PA Speaker System

Description

Yamaha STAGEPAS 1K 1000W Column PA Speaker System

Yamaha STAGEPAS 1K 1000W Column PA Speaker System – The STAGEPAS 1K is an all-in-one portable PA system that allows you to quickly and easily transform any location into your stage. Delivering professional level audio performance with a setup so simple it enables aspiring artists to focus on their music and get the most out of their performances. The STAGEPAS 1K surpasses other portable PAs with the highest standard of sound quality and sound pressure, lightweight cabinet design, professional mixing functions, and simple operability. By adopting a concert-quality mixer and speaker, we have defined a new standard for portable PA by utilizing Yamaha’s unique experience and know-how developed over decades of producing innovative, professional audio equipment from every stage of music engineering and production.

Simple setup and simple control allows you to focus on your performance

The STAGEPAS 1K comes equipped with a wealth of sound adjustment features, including 1-knob EQ to perform multiple EQ processes simultaneously, and MODE which allows you to adjust optimized compression settings like “Speech” or “Music” to match various applications. All adjustments can be done simply with one knob, which makes getting the perfect mix fast and easy with no need to learn a complex workflow and allows you to focus on your performance without worrying about time-consuming parameter adjustment.

Best-in-Class Compact Power

A 1000 W amplifier drives the array speaker with 10 small-diameter 1.5″ units, as well as a class-leading 12″ subwoofer. The impressive 170° horizontal and 30° vertical coverage area delivers consistent performance over long distances, projecting uniform, high-quality sound from the front to the rear of the audience.

Despite its lightweight and compact cabinet construction, the STAGEPAS 1K features a high-output 1000 W amplifier that drives a high-frequency array speaker with 10 x 1.5″ units and a large 12″ subwoofer, producing best-in-class sound pressure levels of up to 119 dB. An impressive 170° horizontal and 30° vertical coverage deliver clear, high-quality sound consistently throughout a wide coverage area.

J-Curve Slim Line Array

The high-frequency speaker array is comprised of 10 small-diameter 1.5″ speakers. By adopting a J-curve array configuration, the high-frequency unit achieves vertical coverage of 30 ° across a span of 170 °. With such a long, 10-driver array design the STAGEPAS can deliver clear, high quality sound consistently over longer distances, projecting uniform, high-quality sound from the front to the rear of the audience.

Class-leading 12-inch “compact” subwoofer

The subwoofer features a 12-inch speaker unit which is hardly “compact,” and actually the largest in its class. However, for the STAGEPAS 1K’s new design we focused on reducing enclosure size and weight in order to improve portability, thus achieving the smallest class cabinet on the market for a subwoofer of this size and power. By incorporating Yamaha’s own Twisted Flare Port™ technology to reduce port wind noise that can occur with compact bass-reflex subwoofers, the low-end output is maximized, producing very deep, powerful, distortion-free bass.

High efficiency “1000” W Class-D amplifier

Also at the top of its class for output power, the 1000W Class-D amplifier module is capable of delivering an impressive 119 dB SPL from the deceptively compact speaker cabinet. And just as importantly, we’ve leveraged Yamaha’s decades-long experience as a manufacturer of professional PA products, and innovator of related technologies to ensure that with great power comes great stability, and that the STAGEPAS 1K maintains the same accurate, superior-quality sound even at high output.

Digital mixer with versatile input

With outstanding flexibility for a PA system of this size, the 5-channel digital mixer features three channels of mono microphone/line inputs and stereo inputs, with two of the mono input channels equipped with Hi-Z connectivity for direct input of acoustic-electric guitars and other instruments. In addition to Phone and 1/8″mini jacks, the stereo connections support playback with Bluetooth devices as well as a wide range of input sources from instruments to CDs, PCs and smartphones.

Professional control with a single knob

STAGEPAS 1K comes equipped with a wealth of sound shaping functions, including 1-knob EQ for optimized multi band EQ setting, industry standard SPX reverb, and the “Mode” control for master output compression settings that match various applications such as “Speech” or “Music.” Each of these functions can be set via a single knob, and have simplified many of the tough tasks like EQ and compression to get you great sound fast.

1. SPX the standard digital reverb

One knob gives you access to four different high-quality reverb settings—perfect for vocals and acoustic instruments. Simply turn the knob to change the reverb type and time, and then you’re ready to apply just the right amount of high-resolution effect to each channel.

2. 1-knob EQ

Whether turning to the left to cut unnecessary low-end frequencies for speeches, or turning to the right to emphasize the bottom and high end for band performances, this innovative equalizer can dial in the perfect sound adjustment with a simple turn of the knob.

3. “MODE” for master output

The multiband compressor adjusts optimized compression settings to suit various applications. By selecting the setting closest to your application, you can add a more professional edge to your sound without having to learn difficult compression/audio engineering principles.

STAGEPAS Editor

STAGEPAS Editor is STAGEPAS 1K’s dedicated remote control application that allows users to adjust volume and EQ at a distance via Bluetooth during rehearsal or performance. You can also save the adjusted settings for certain songs or applications in order to shorten your setup process in the future and maintain consistency from one performance to the next.
